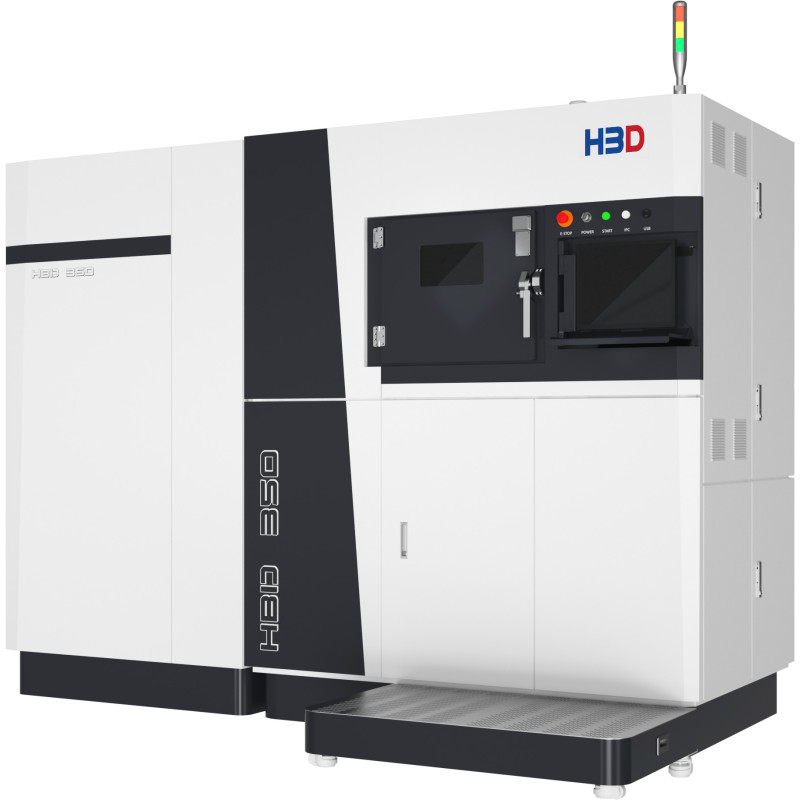

HBD 350 SLM Metal 3D Printer
High-Performance Metal 3D Printing System: Precision, Versatility, and Efficiency:
-
High-Precision Metal 3D Printing:
Delivers 99%+ density and 0.05-0.2mm accuracy for durable, detailed parts.
-
Versatile Material Support:
Compatible with stainless steel, titanium alloys, tool steel, cobalt-chrome, and precious metals.
-
Efficient Performance:
High-speed scanning (10,000mm/s) and adjustable layer thickness ( 20μm-120μm) for optimized productivity.
- Advanced Atmosphere Control:
Sealed design with oxygen monitoring (<100PPM) ensures exceptional quality and part integrity.
- Customizable Software:
Open software and tailored parameters support diverse application needs.
HBD 350 SLM Metal 3D PRINTER
Entry-level Metal Additive Manufacturing Systems for Batch Production
WHY HBD 350?
Four Lasers Configuration
Four 500W fiber lasers operate steadily alongside a building volume of 325mm×325mm×400mm,
providing an effective solution for scaled production.
Efficient Powder Recoating Configuration
Intelligent variable speed design and bidirectional recoating increase flexibility and improve
efficiency.
Enhanced Software Support
Take advantage of traceable printing logs that allow for detailed tracking of each print job, along
with real-time monitoring features to guarantee optimal results and top-notch printing quality
Optional Long Lasting Filtration System
Upgradeable configuration with self-cleaning long-lasting filtration system, lifespan exceeding 5
years, ideal for prolonged batch printing operations
3D Print Cases
Utilizing 3D metal printing for hydraulic manifolds offers the advantage of producing components with intricate
internal passages, reducing the risk of leakage and improving hydraulic system efficiency. Customized designs
can enhance fluid flow control and reduce the need for complex assembly, resulting in more reliable and
cost-effective hydraulic systems.
Hydraulic Manifold
Industry: Automotive
Material: SS 316L
Size: 131*138*119mm
Weight: 1767.97g
Time: 14h
| Build Volume | 325mm × 325mm × 400mm(height incl. build plate) |
| Laser Power | 2 Lasers, 500W/1000W 4 Lasers, 500W/1000W |
| Layer Thickness | 20μm-120μm |
| Scanning Track Width | 70μm-200μm |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥ 99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05-0.2mm |
| Metal Powder | Titanium alloy, cobalt-chromium alloy, stainless steel, mold steel, etc. |
| Process Parameter Configuration | Tailored parameter set for the specific application, user-modifiable |
| Weight | Est. 3000kg |
| External Dimensions | 1900mm × 1500mm × 2300mm |
| Power Supply | 500W: AC380V, 50/60Hz, peak power ≤14-15kW, average power ≤5.5-7kW 1000W: AC380V, 50/60Hz, peak power ≤15-17kW, average power ≤7-9kW |
