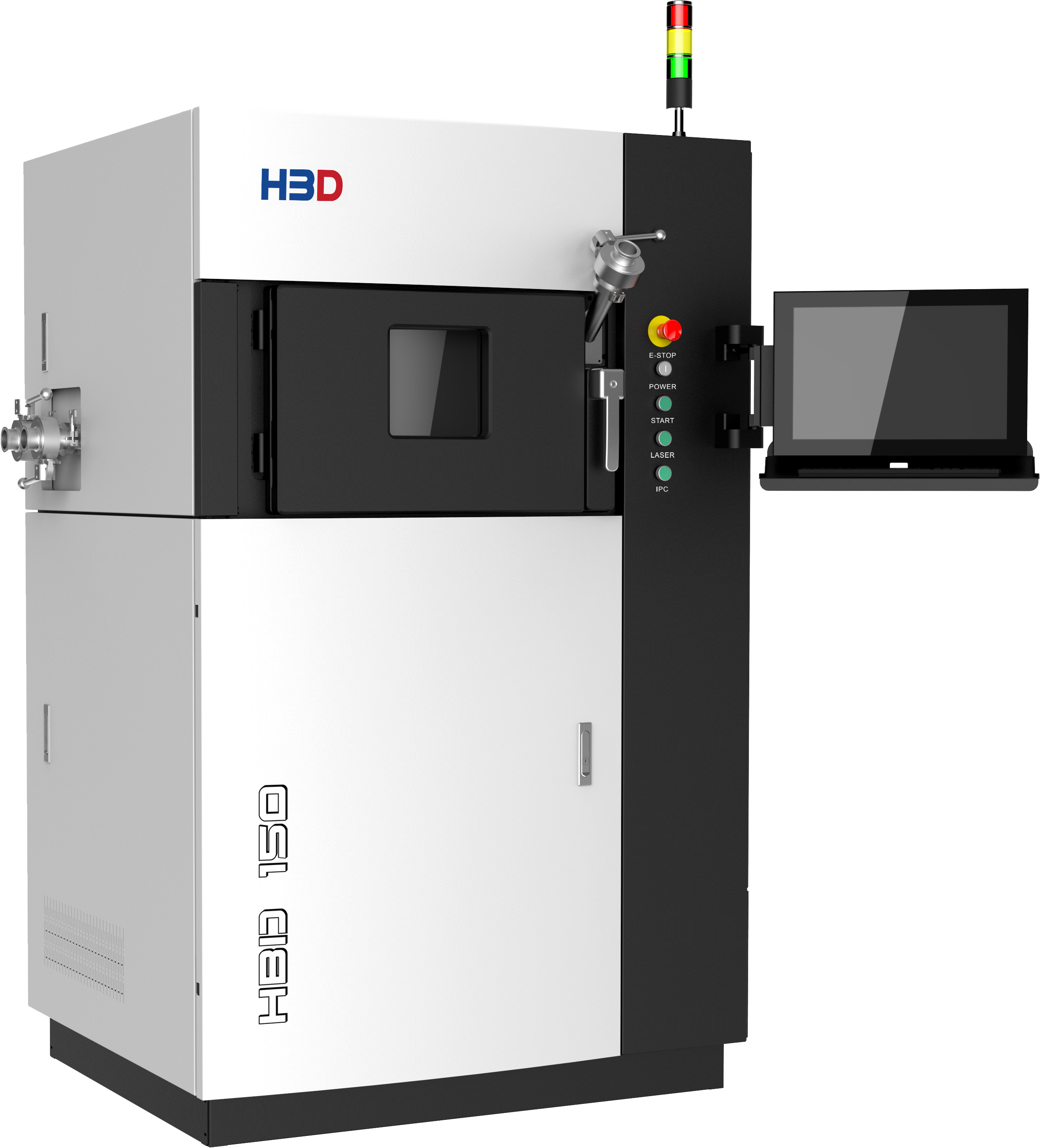

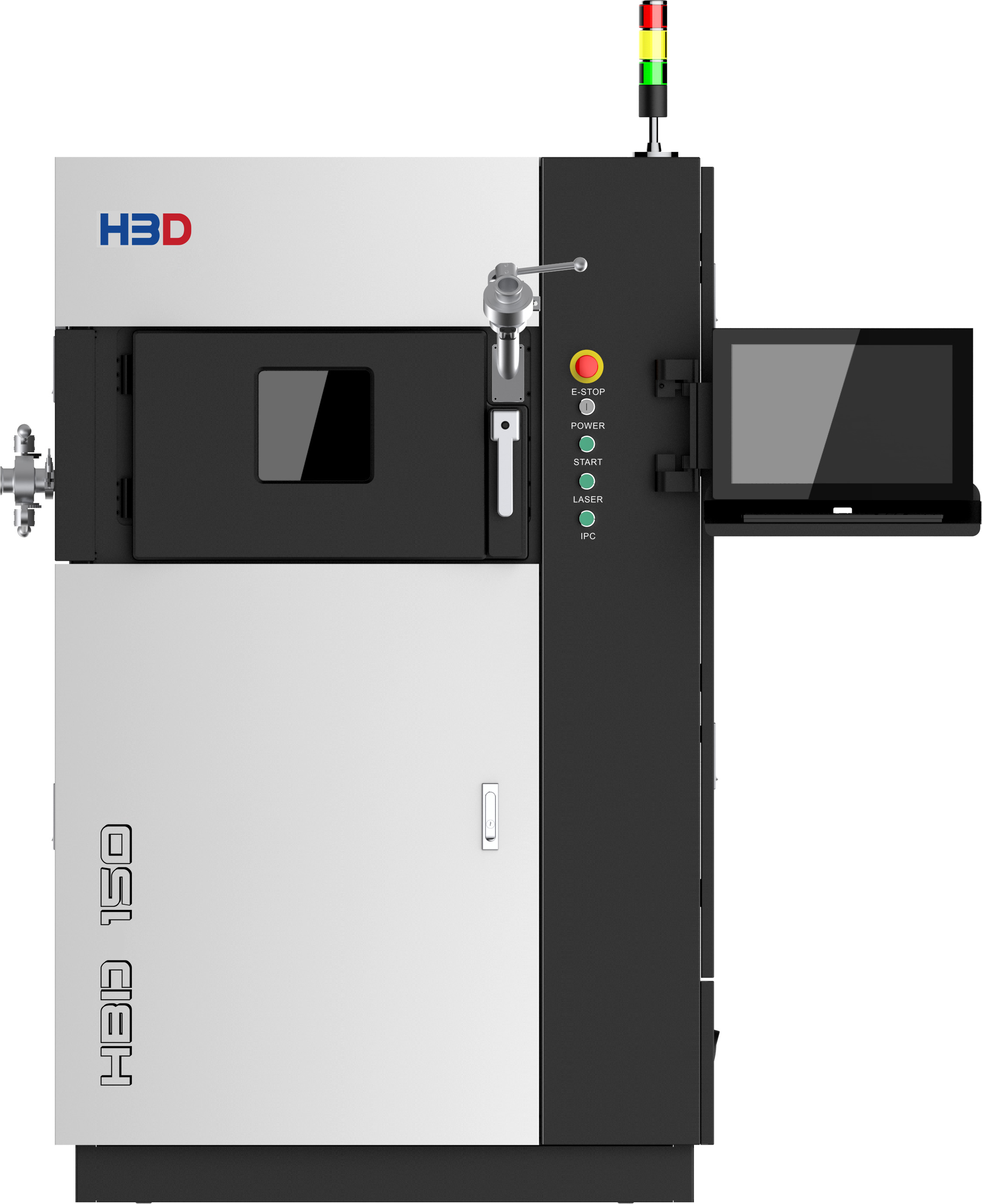

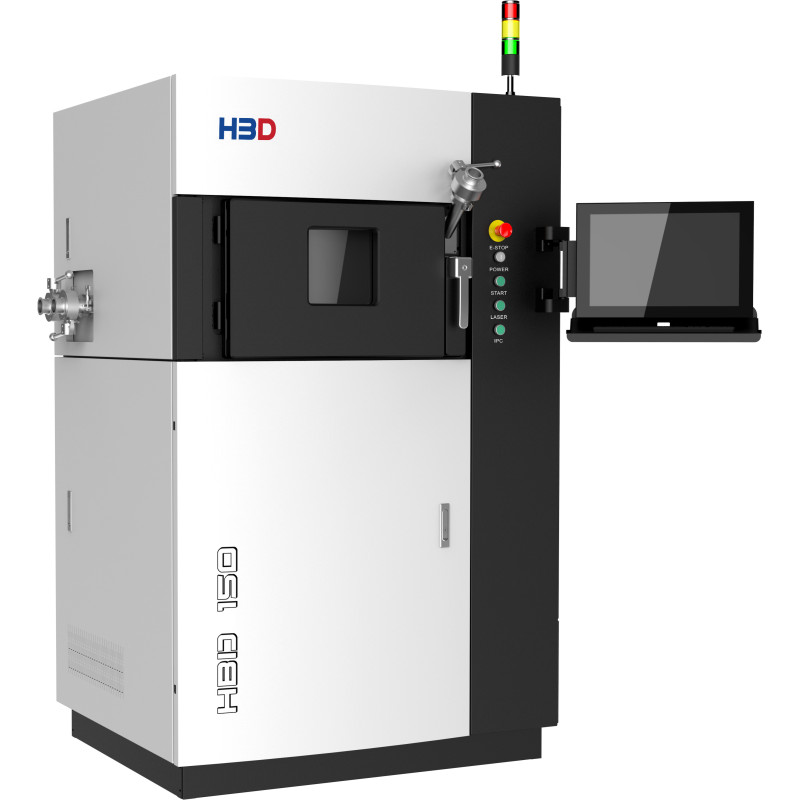

HBD-150D Single Laser 300W SLM Metal 3D Printer
- High-precision metal 3D printing – over 99% density and 0.05–0.1 mm accuracy for detailed, durable parts.
- Versatile material compatibility – supports stainless steel, titanium alloys, tool steel, cobalt-chrome, and precious metals.
- Efficient performance – scanning speed up to 10 000 mm/s and adjustable layer thickness (10–50 μm) for optimized productivity.
- Advanced atmosphere control – sealed system with oxygen monitoring (< 100 PPM) ensures excellent part quality and integrity.
- Customizable software – open parameters allow adaptation to various applications and industrial needs.
HBD-150D Single Laser 300W SLM Metal 3D Printer
Advanced Metal 3D Printing: Precision, Speed, and Versatility for Industrial Applications
WHY HBD 150D?
Multiple Material Compatibility

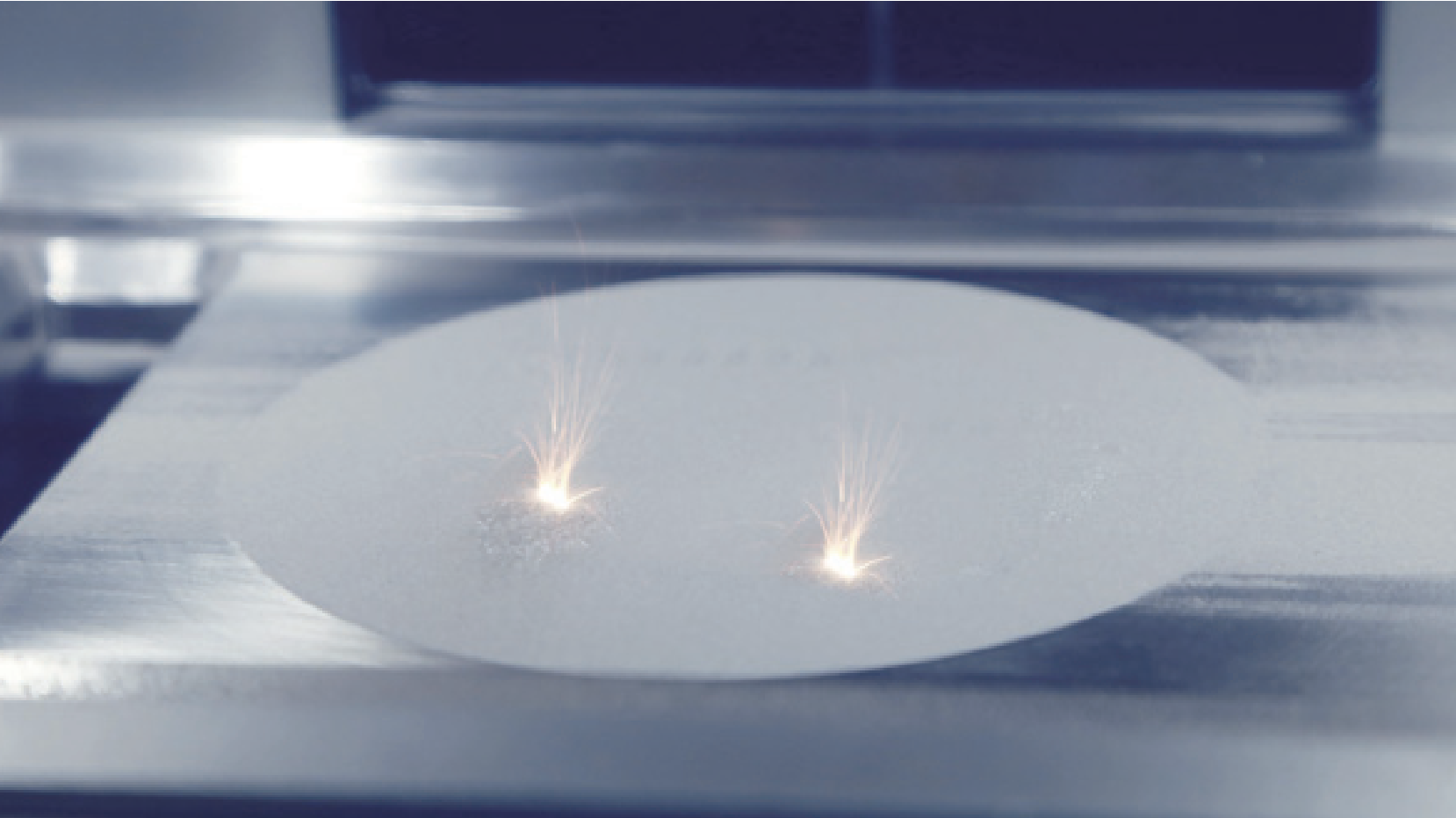

The single-laser technology optimizes print area coverage, ensuring consistent precision across the entire surface. Its stable and reliable system delivers steady performance even under intensive use.

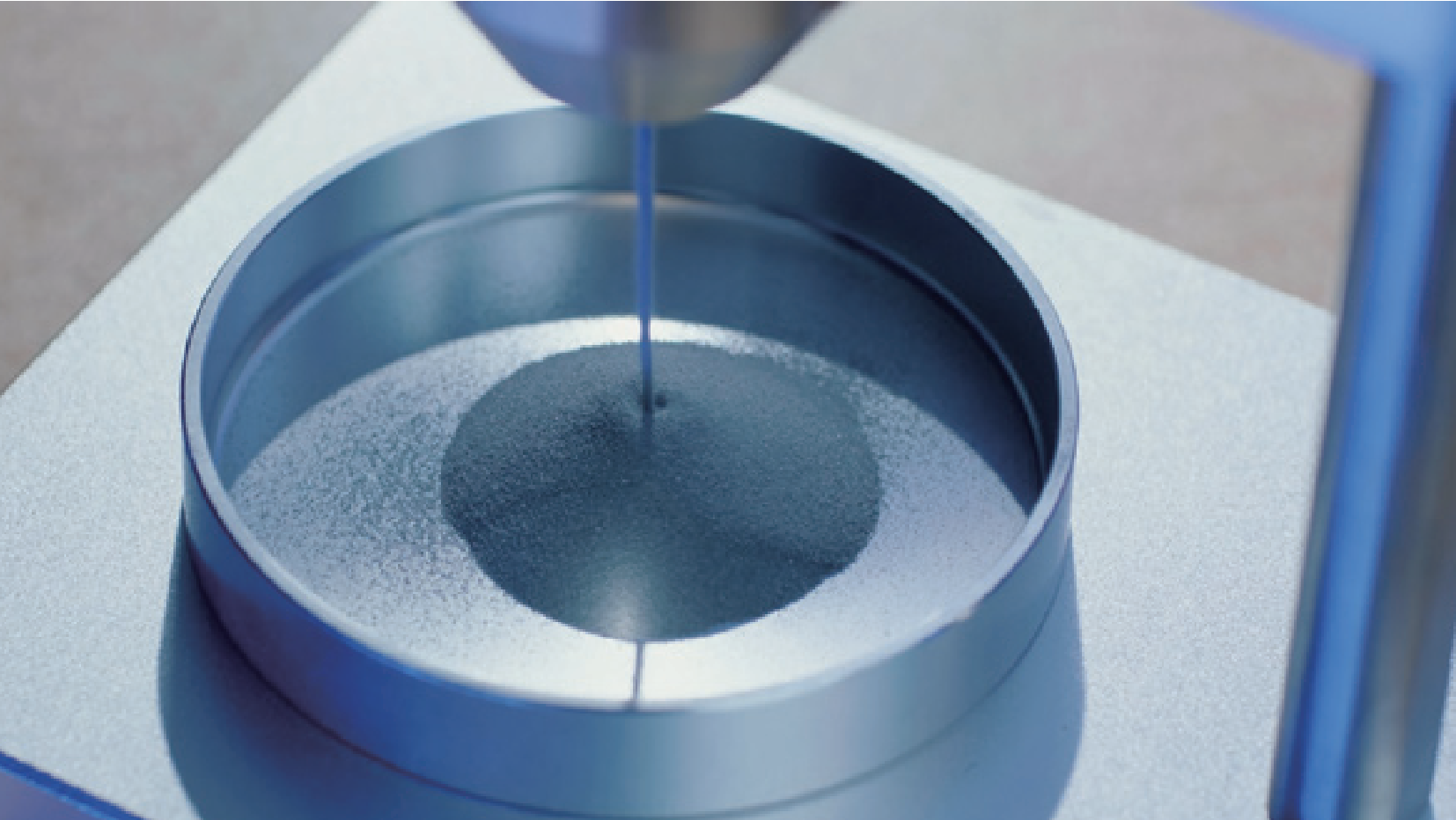

Multiple Material Compatibility
Supports a wide range of metal materials, providing flexibility and multiple options to meet the requirements of various industrial applications.
Tailored Customization
The HBD-150D provides flexible, customized metal additive manufacturing solutions designed to meet each customer’s specific requirements. Its efficient and adaptable design allows seamless integration into a wide range of industrial processes.

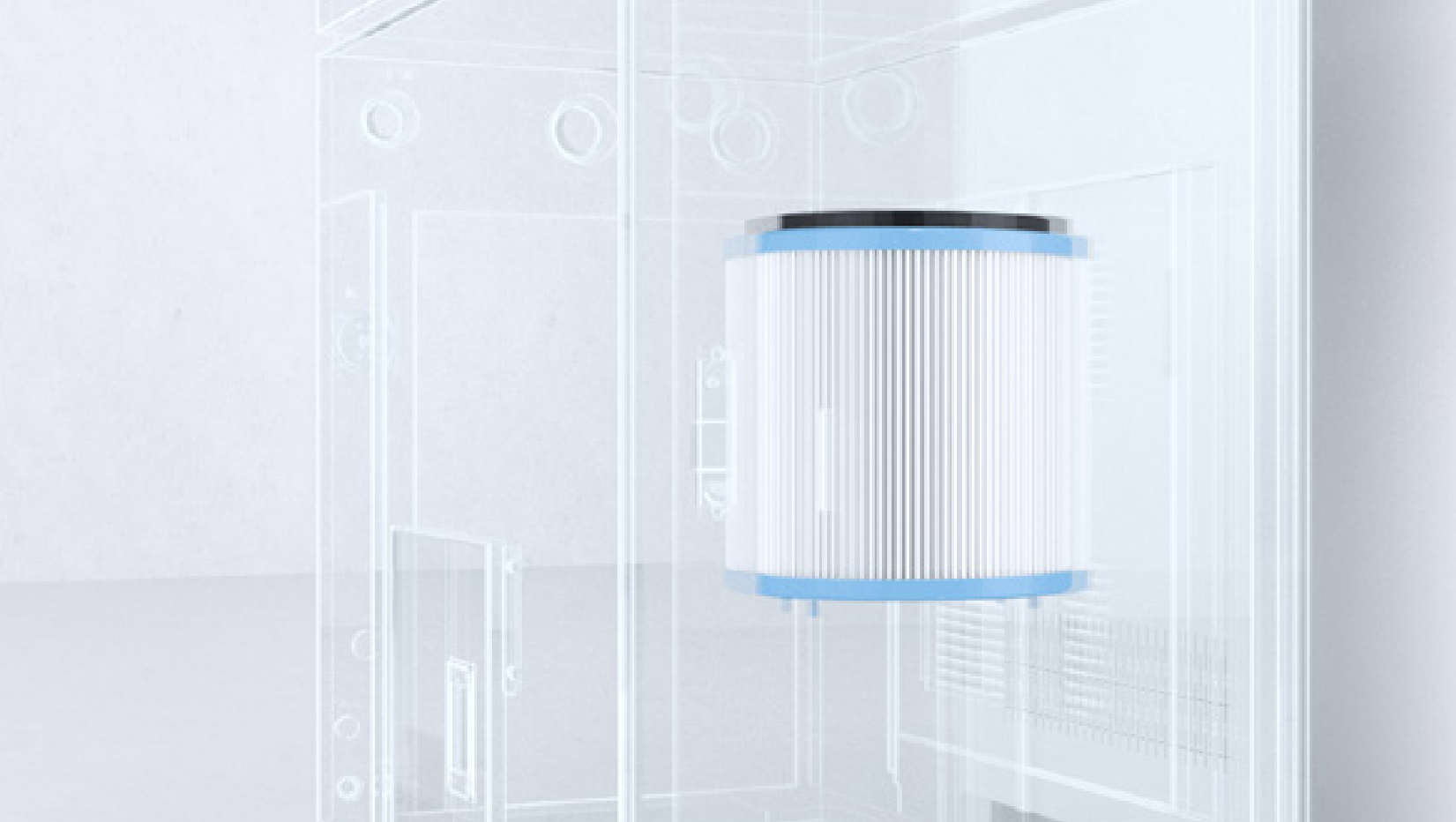

Efficient Purification Assurance
The independent purification system ensures safe and efficient metal powder filtration with a cleaning rate exceeding 99.9%. This keeps the printing environment clean and stable, guaranteeing superior part quality and consistent production performance.

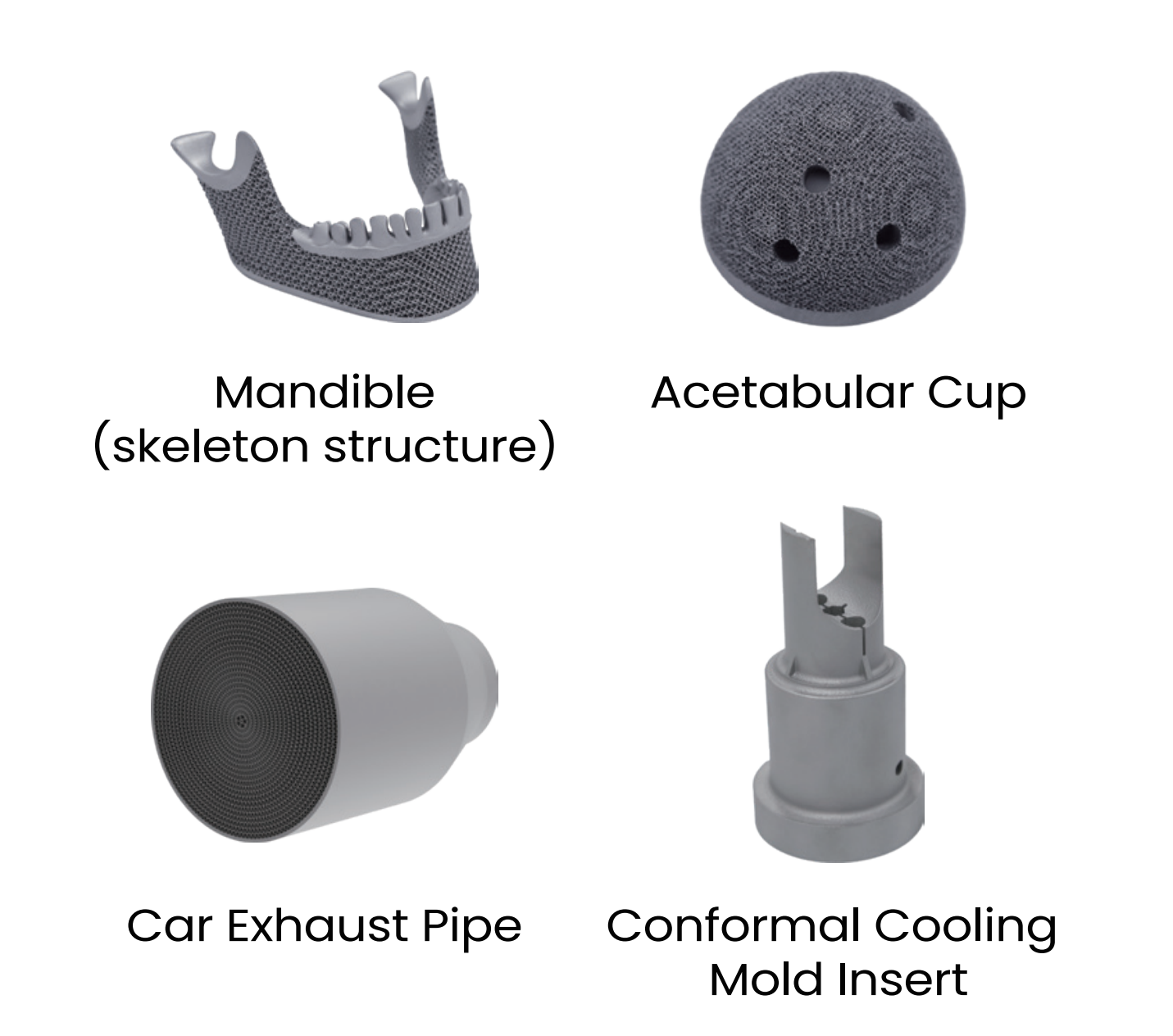

3D Print Cases
Titanium medical mesh produced with metal 3D printing technology provides an advanced and efficient solution for rapid prototyping, reducing production time and costs while maintaining high precision and strict quality control.
Metal 3D printing enables the incorporation of porous structures into the mesh, enhancing osseointegration, tissue ingrowth, and the biocompatibility of medical implants.
By optimizing the printing parameters for titanium mesh, the HBD-150D significantly reduces the need for support structures and minimizes post-processing, ultimately improving the overall quality of the final product.

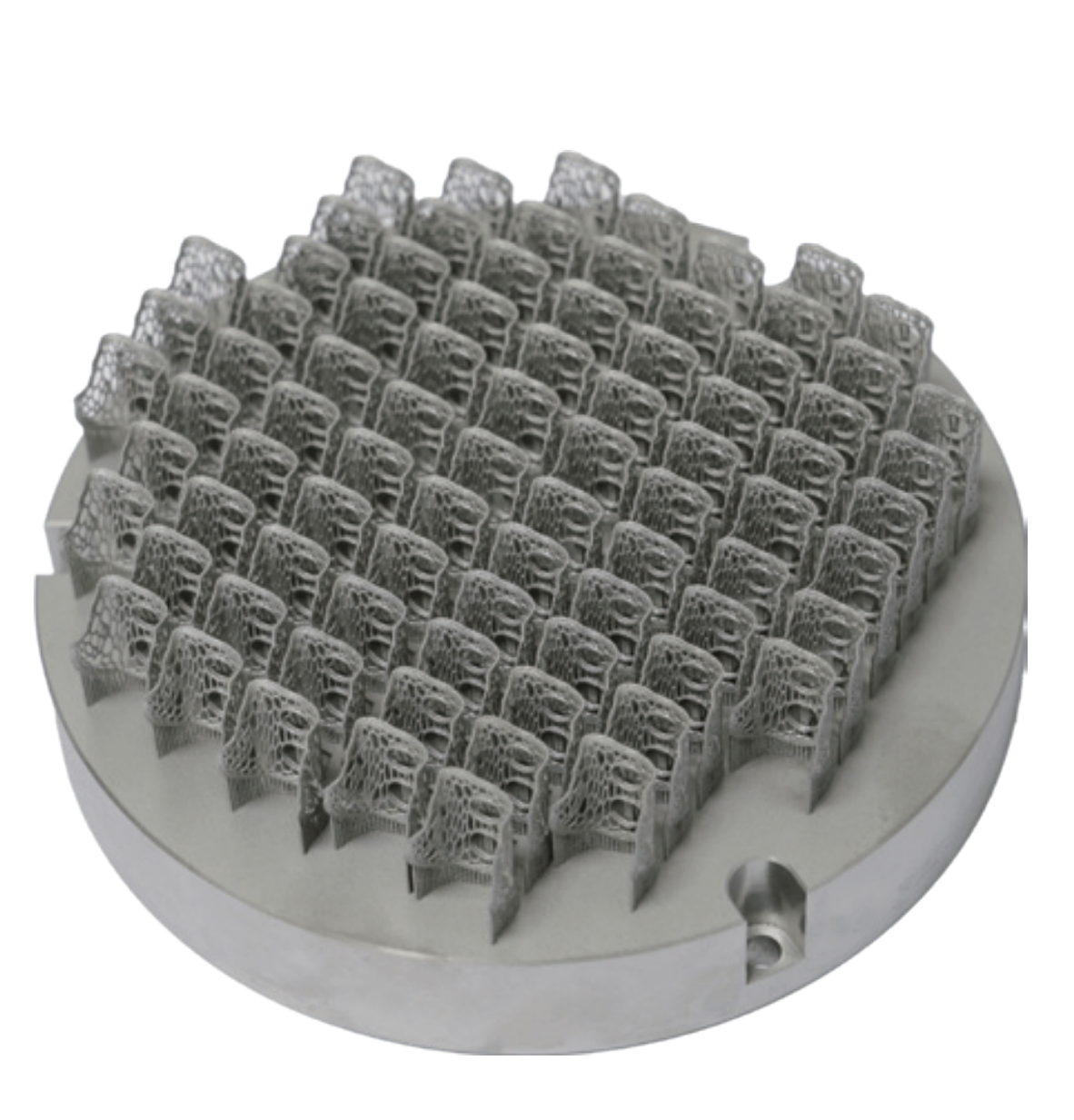

Titanium Mesh
Industry: OrtHopedics
Material: TC4
Size: 12*16*22mm
Weight: 3g
Quantity:82
| Parameter | Specification |
|---|---|
| Build Volume | φ158mm × 100mm (height incl. build plate) |
| Laser Power | 1 Laser, 300W / 500W | 2 Lasers, 300W |
| Layer Thickness | 10μm – 50μm |
| Scanning Track Width | 40μm – 80μm |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Fully sealed system, automatic oxygen monitoring, recycling, cleaning, and collection efficiency ≥ 99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05 – 0.1mm |
| Metal Powder | Titanium alloy, cobalt-chromium alloy, stainless steel, mold steel, etc. |
| Process Parameter Configuration | Tailored parameter set for specific applications, user-modifiable |
| Weight | Approx. 950kg |
| External Dimensions | 1150mm × 1150mm × 1830mm |
| Power Supply |
300W: AC220V, 50/60Hz, peak power ≤4.3–4.5kW, average power ≤2.8–3kW 500W: AC380V, 50/60Hz, peak power ≤5.5kW, average power ≤3.5kW |
Mot150D-300W
