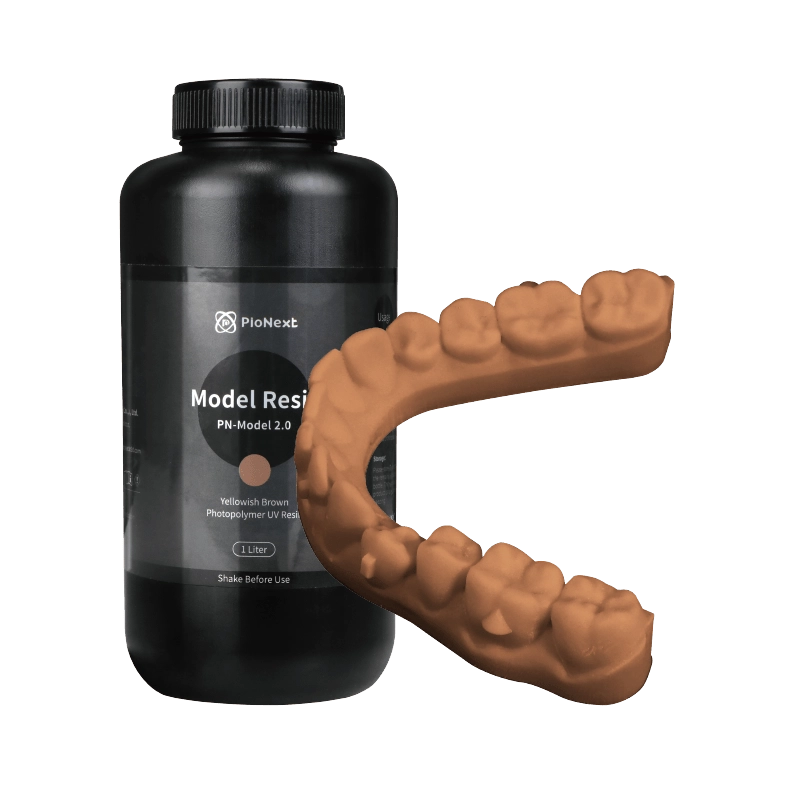

Ortho Model 2.0 Resin
- Cost-effective and reliable solution for dental 3D printing.
- Fast curing, exceptional precision, and dimensional stability.
- High durability and smooth finish for quality models.
- Versatile use: orthodontics, crowns, bridges, and implants.
- Compatible with digital CAD/CAM workflows and multiple 3D printers.
Ortho Model 2.0 Resin is a professional dental resin designed as an economical and reliable solution for 3D printing in dentistry. Developed to meet the needs of modern laboratories and clinics, this resin combines fast curing speed with exceptional precision and superior surface durability, ensuring consistent and high-quality results.
Its advanced formula provides dimensional stability and clarity of details, even under intensive use. Thanks to its durability and smooth finish, the material integrates perfectly into digital CAD/CAM workflows, offering both efficiency in the working process and long-term reliability.
Ortho Model 2.0 Resin is widely used for the production of orthodontic models, crown and bridge models, as well as implant models, where accuracy and strength are essential. Through its unique combination of affordability, speed, and quality, this resin becomes the ideal partner for professionals who want to deliver modern, precise, and durable solutions to their patients.
| Category | Measurement | Test Method | Value | Unit |
|---|---|---|---|---|
Before Curing (Pre-cure) |
Viscosity (@25°C) | ASTM D 2196 | 200–350 | cps |
| Density (@25°C) | ASTM D 792 | 1.05–1.10 | g/cm³ | |
After Curing (Post-cure) |
Hardness, Shore D | ASTM D 2240 | 85–90 | — |
| Flexural Modulus | ASTM D 790 | 1200–1600 | MPa | |
| Flexural Strength | ASTM D 790 | 80–95 | MPa | |
| Tensile Modulus | ASTM D 638 | 600–1000 | MPa | |
| Tensile Strength | ASTM D 638 | 40–50 | MPa | |
| Elongation at Break | ASTM D 638 | 10–15 | % | |
| Impact Strength (Notched Izod) | ASTM D 256 | 35–45 | J/m | |
| Heat Deflection Temperature @66 PSI | ASTM D 648 | 75–85 | °C | |
Suggested Printing Parameters |
||||
| Equipment | Layer Thickness | Base Layer Exposure | Normal Layer Exposure | Lift Speed |
| Piocreat DJ-89Plus | 0.05 mm | 60 s | 2.7 s | 7 mm/s |
| Piocreat C01 | 0.05 mm | 60 s | 2.7 s | 7 mm/s |
| Piocreat D136 | 0.05 mm | 60 s | 2.2 s | 7 mm/s |
| Piocreat D150 | 0.05 mm | 40 s | 1.8 s | 5 mm/s |
| Piocreat D158 | 0.05 mm | 40 s | 1.8 s | 5 mm/s |
| Piocreat D160 | 0.05 mm | 40 s | 1.8 s | 5 mm/s |
| Piocreat D190 | 0.05 mm | 60 s | 2.0 s | 5 mm/s |
| Creality Halot-R6 | 0.05 mm | 60 s | 2.7 s | 5 mm/s |
| Creality Halot-Sky | 0.05 mm | 60 s | 2.7 s | 7 mm/s |
| Creality Halot Mage S | 0.05 mm | 60 s | 2.7 s | 7 mm/s |
| Anycubic Photon Mono M5s | 0.05 mm | 70 s | 3.0 s | 5 mm/s |
| Anycubic M7 Pro | 0.05 mm | 70 s | 2.2 s | 7 mm/s |
| Anycubic DLP D2 | 0.05 mm | 40 s | 3.2 s | 5 mm/s |
| Elegoo Saturn 3 Ultra | 0.05 mm | 60 s | 2.6 s | 7 mm/s |
| Elegoo Saturn 4 Ultra | 0.05 mm | 60 s | 2.6 s | 7 mm/s |
| Phrozen Sonic Mini 8K S | 0.05 mm | 60 s | 2.6 s | 7 mm/s |
| Phrozen Sonic Mighty Revo | 0.05 mm | 60 s | 3.5 s | 7 mm/s |
| Phrozen Sonic Mega 8K S | 0.05 mm | 60 s | 2.4 s | 7 mm/s |
