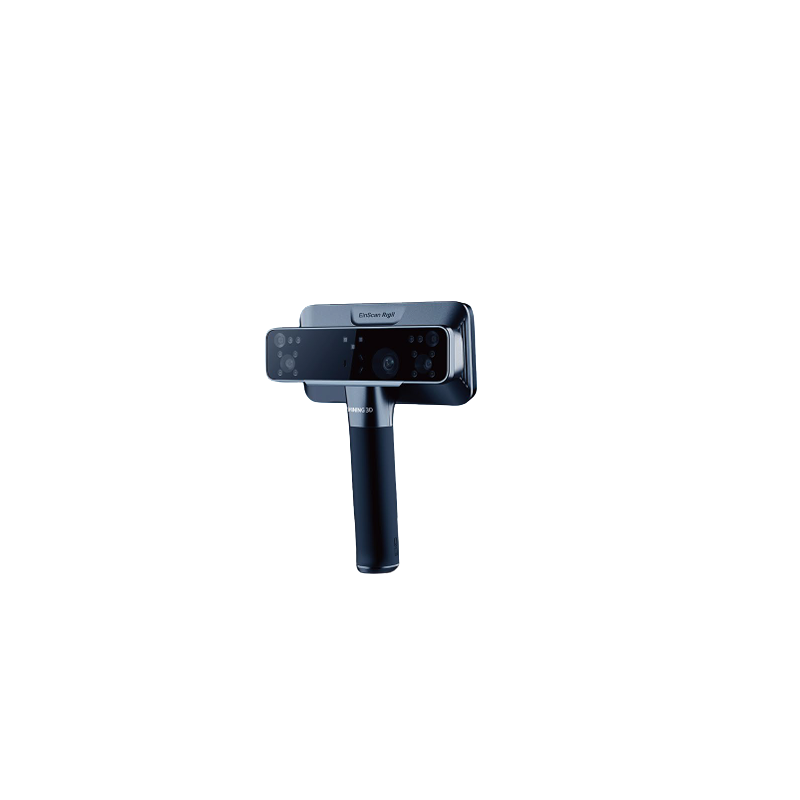

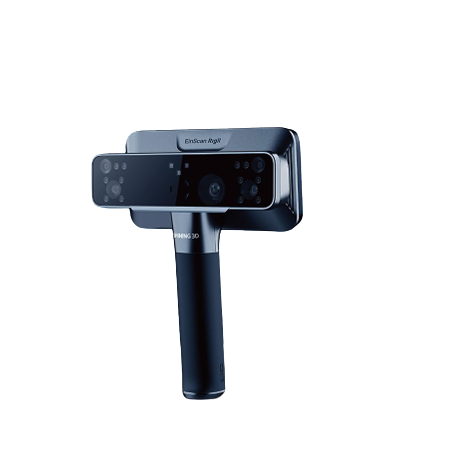

EinScan Rigil – Tri-Mode Laser 3D Scanner
€6,534.00
Tax included
- Dual operation modes: Laser HD and IR Rapid for both precision and speed.
- Volumetric accuracy up to 0.04 + 0.06 mm/m, ideal for professional use.
- Full-color scanning with a 5 MP camera for realistic texture capture.
- Wireless operation featuring a 6.4” AMOLED display and dual 6000 mAh batteries.
- Optimized for Windows 11 / NVIDIA RTX, ensuring powerful and stable performance.

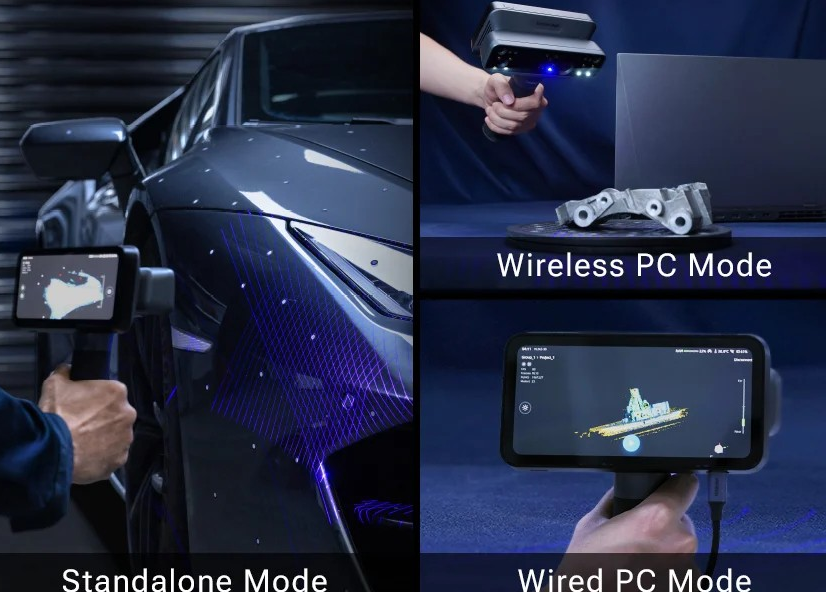

Three Intelligent Work Modes
The EinScan Rigil introduces three flexible operation modes designed to deliver maximum efficiency, performance, and adaptability for any scanning scenario.
Standalone Mode: Operates without a PC connection — all scanning and processing tasks are performed directly on the device for a fully independent workflow.
Wireless PC Mode: Featuring built-in Wi-Fi 6, it enables fast and stable connectivity to a powerful computer, ideal for handling complex projects and large data volumes.
Wired PC Mode: Ensures maximum data transfer speed, stability, and reliability in demanding or industrial environments.

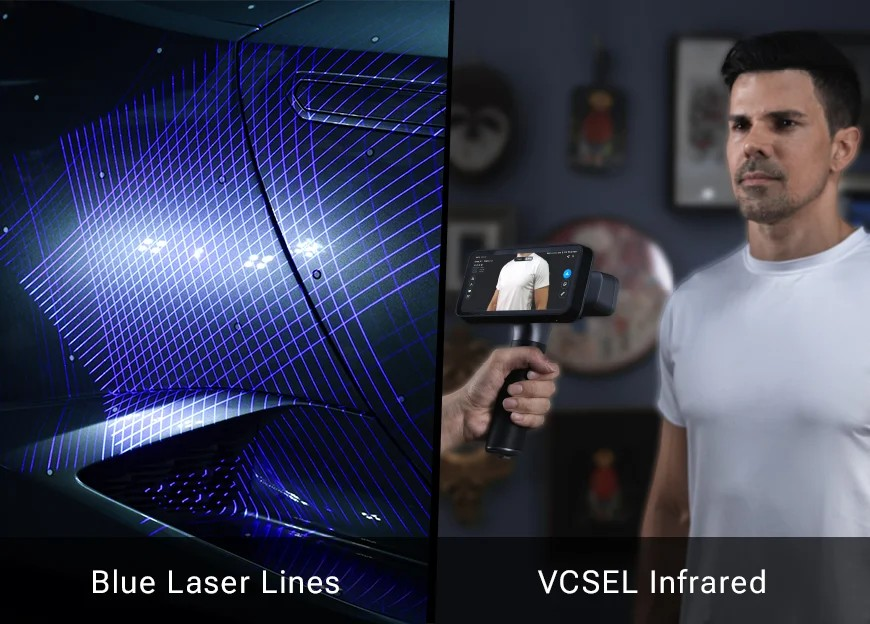

Hybrid Light Source
Two independent camera groups are specifically engineered to capture different light sources, ensuring superior detail and scanning accuracy.
Blue laser lines
VCSEL infrared
Three Intelligent Work Modes
The EinScan Rigil introduces three flexible operation modes designed to deliver maximum efficiency, performance, and adaptability for any scanning scenario.
Standalone Mode: Operates without a PC connection — all scanning and processing tasks are performed directly on the device for a fully independent workflow.
Wireless PC Mode: Featuring built-in Wi-Fi 6, it enables fast and stable connectivity to a powerful computer, ideal for handling complex projects and large data volumes.
Wired PC Mode: Ensures maximum data transfer speed, stability, and reliability in demanding or industrial environments.
Hybrid Light Source
Two independent camera groups are specifically engineered to capture different light sources, ensuring superior detail and scanning accuracy.
Blue laser lines
VCSEL infrared
Laser HD Mode
Delivers high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05 mm.
19 + 19 crossed laser lines: enable high-speed scanning with outstanding efficiency and flexibility.
7 parallel laser lines: capture fine details with consistent and precise results.
Dynamic Laser Switching
Two laser scanning modes can be switched during the scanning process, and the collected data can be merged to combine both speed and detail in a single scanning project.

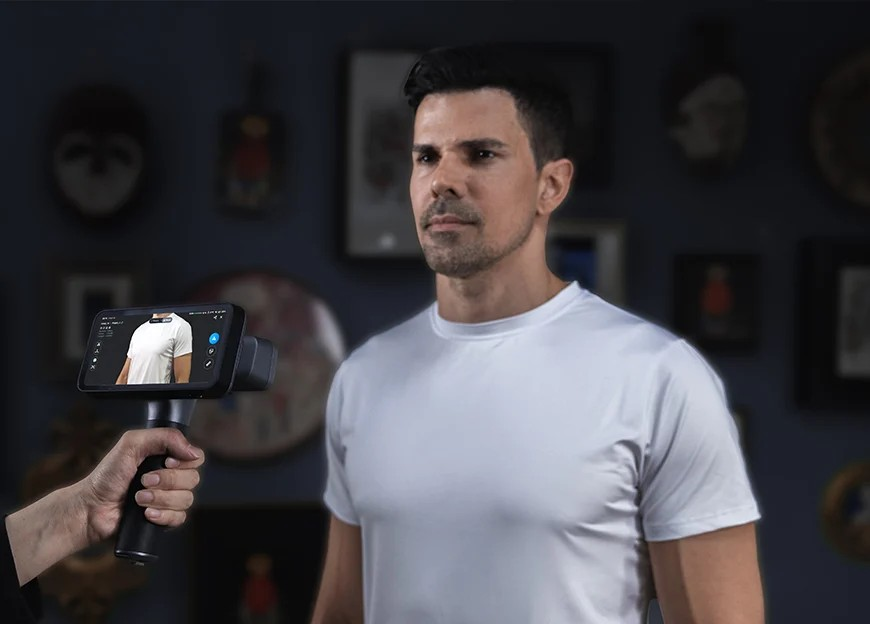

IR Rapid Mode
VCSEL infrared-powered scanning solution designed for high efficiency and wide coverage of medium to large-sized objects.
Volumetric accuracy: up to 0.1 + 0.3 mm/m
Working distance: 160 ~ 1500 mm
Scanning speed: up to 1,600,000 points/s
Marker-Free Laser Scanning
The EinScan Rigil features an advanced tracking algorithm that enables marker-free blue laser scanning through the Laser + IR hybrid mode available in the EXScan Rigil software.
This provides higher efficiency than traditional marker-based laser scanning and better data quality than standard marker-free IR scanning.

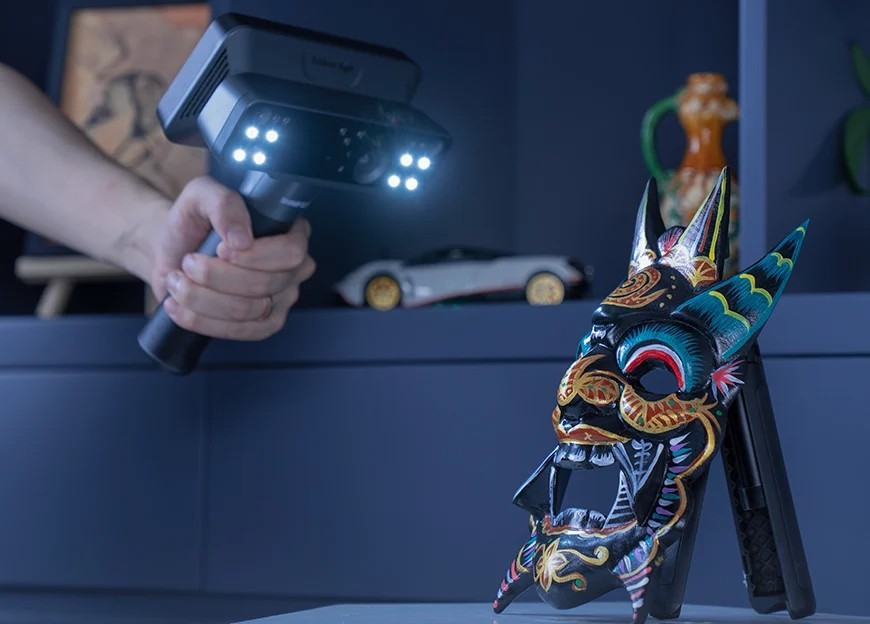

Full-Color Texture Scanning
Equipped with a 5 MP high-definition camera, the EinScan Rigil captures high-quality texture details, allowing designers, engineers, and artists to preserve high model fidelity during the digitization process.
This provides more accurate information for subsequent analysis and creative work, ensuring a realistic and detailed digital representation.

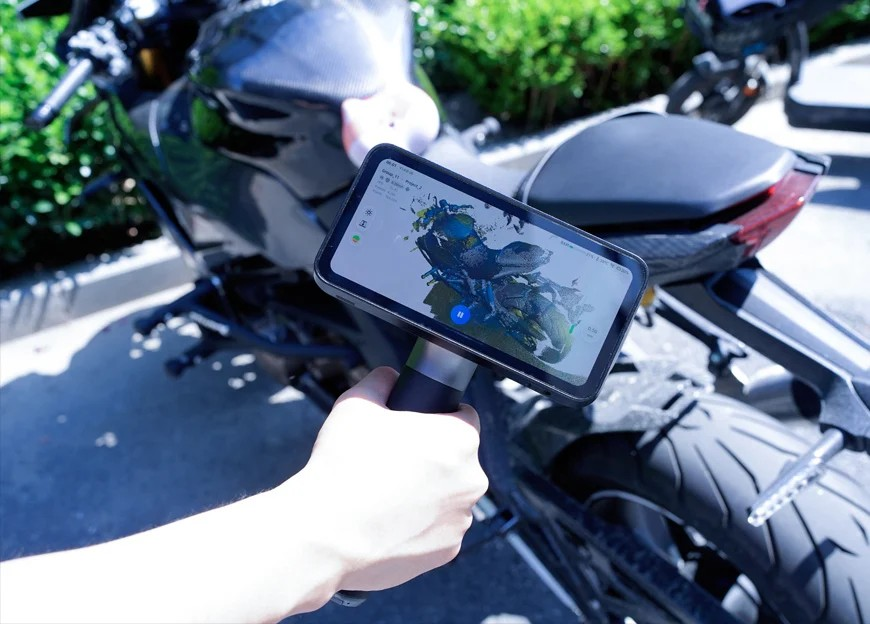

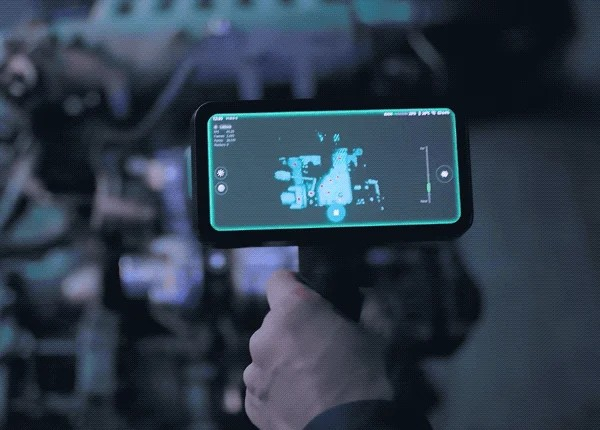

Wireless Workflow
Wireless scanning: operate completely without connecting to a PC.
Wireless transfer: share data directly to the SHINING 3D Cloud.
Wireless screen casting: display the interface on a secondary screen.

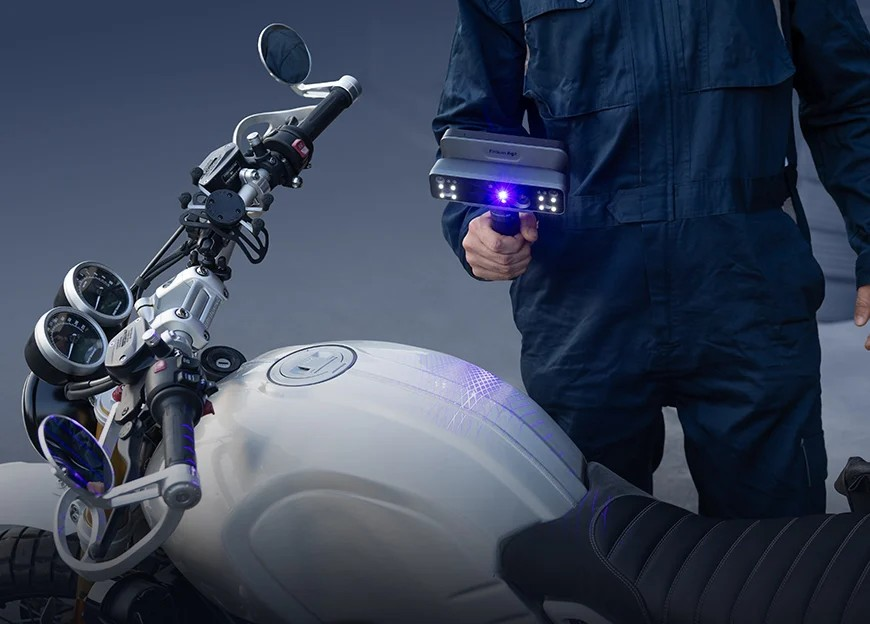

Reliable Scanning from Workshop to Outdoors
Performs efficiently even under direct sunlight, maintaining high accuracy in outdoor environments.
Adapts seamlessly to dark or reflective metal surfaces — no spray required.
Powerful Hardware
Display: 6.4" 2K AMOLED
RAM: 32 GB DDR5
Storage: 32 GB eMMC + 1 TB SSD
Battery: 2 × 5500 mAh replaceable batteries
| Work Mode | Wireless Standalone For additional computing resources: PC – Wireless / PC – Wired |
|---|---|
| Scan Mode | Laser HD / IR Rapid |
| Light Source | 19+19 crossed laser lines | 7 parallel laser lines / IR VCSEL |
| Resolution | 0.05 ~ 10 mm (Laser) / 0.2 ~ 10 mm (IR) |
| Scanning Speed | 4,400,000 points/s (Laser) / 1,600,000 points/s (IR) |
| Working Distance | 170 ~ 550 mm (Laser) / 160 ~ 1500 mm (IR) |
| Alignment Mode | Global Markers / Markers / Features / Hybrid |
| Volumetric Accuracy | Up to 0.04 + 0.06 mm/m (Laser) / Up to 0.1 + 0.4 mm/m (IR) |
| Camera Resolution | 3D: 2.3 MP × 2 / 1.3 MP × 2; Texture: 5 MP |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Laser Class | Class II |
| Hardware | CPU: 8-core, 2.4 GHz; SSD: 1 TB; RAM: 32 GB DDR5; 6.4” 2K AMOLED Touchscreen |
| Operating Conditions | Temperature: -10°C ~ 40°C |
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 |
| Recommended PC Configuration | Windows 11 Pro 22H2 (64-bit); GPU: NVIDIA GeForce RTX 3060 Laptop or above; VRAM: 8 GB+; RAM: 64 GB DDR5; Interface: USB 3.0; Processor: Intel® Core™ i7-13700H or higher |
| Interface & Power Source | USB Type-C; Battery: 2 × 6000 mAh; Charger: 60W PD3.0 |
| Dimensions (H × D × W) | 233 × 180 × 72.8 mm |
| Net Weight | 870 g (batteries included) |
