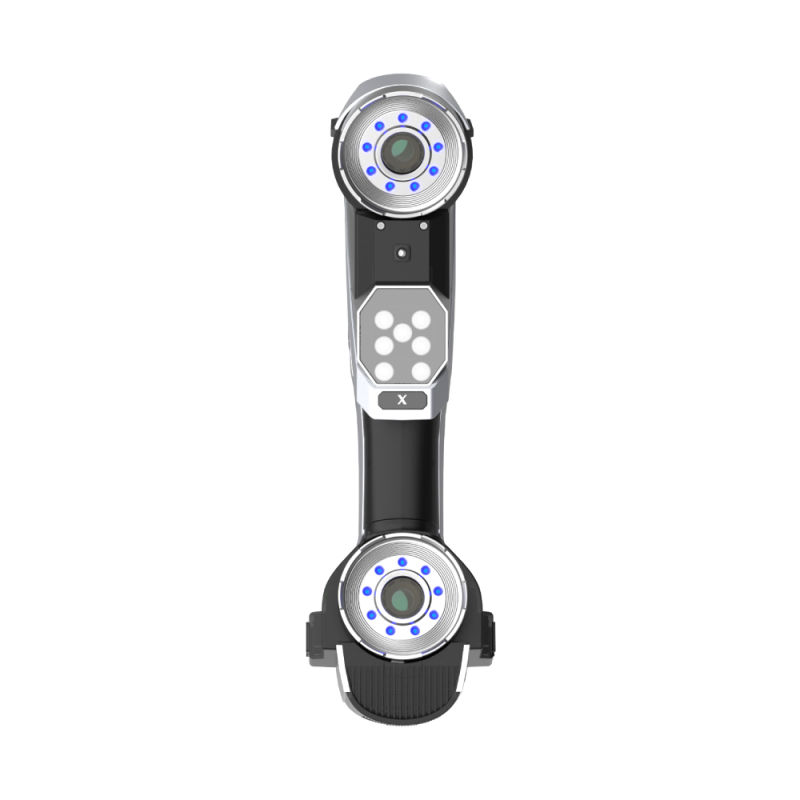

KSCAN-X – High-Precision Wireless 3D Scanner
- Wireless 3D scanner for medium and large objects, offering total portability
- High accuracy up to 0.030 mm and scanning speed of 6.45 million points/second
- Ideal for industry, engineering, and quality control in complex environments
KSCAN-X Wireless 3D Scanner – Accuracy and Speed for Industry
Smart wireless 3D scanner, equipped with adaptive photogrammetry technology, designed for precise measurement of ultra-large, large, and medium surfaces. It delivers top performance in aerospace, heavy industry, railway transport, and other sectors where accuracy, efficiency, and reliability are essential.

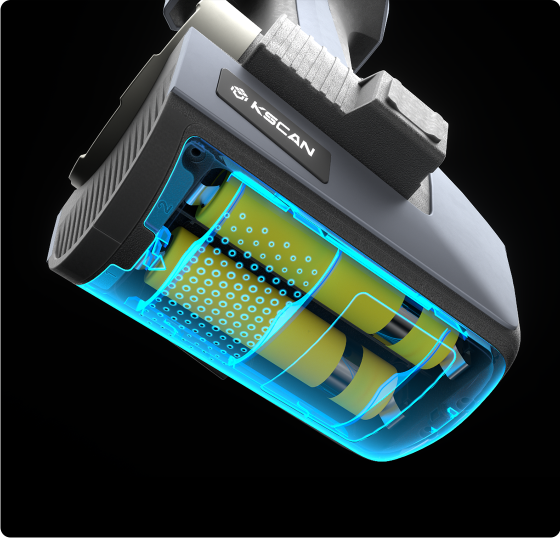

Complete mobility with wireless scanning
It operates completely wire-free, enabling smooth scanning even in environments with limited power access, at heights, or in remote locations. Enjoy true wireless freedom in 3D measurement.
Maximum performance on large surfaces
Superior speed and smoothness
Revolutionary measurement efficiency

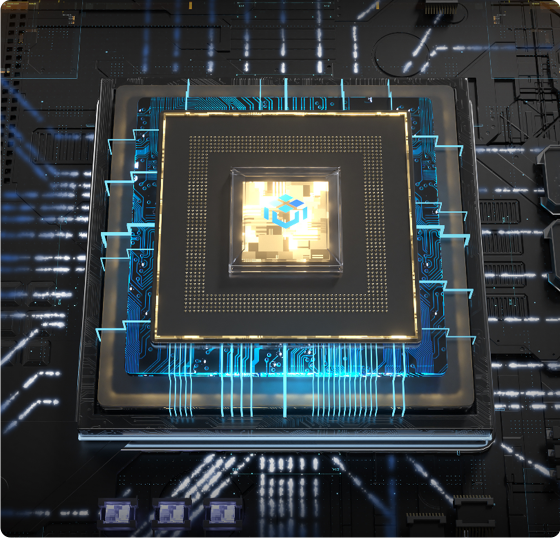

Equipped with innovative quad-cross blue laser technology and a high-frame-rate processing chip, KSCAN-X delivers a major leap in measurement efficiency. It ensures fast and precise results even for large parts, including in challenging environments.
Diverse and flexible applications

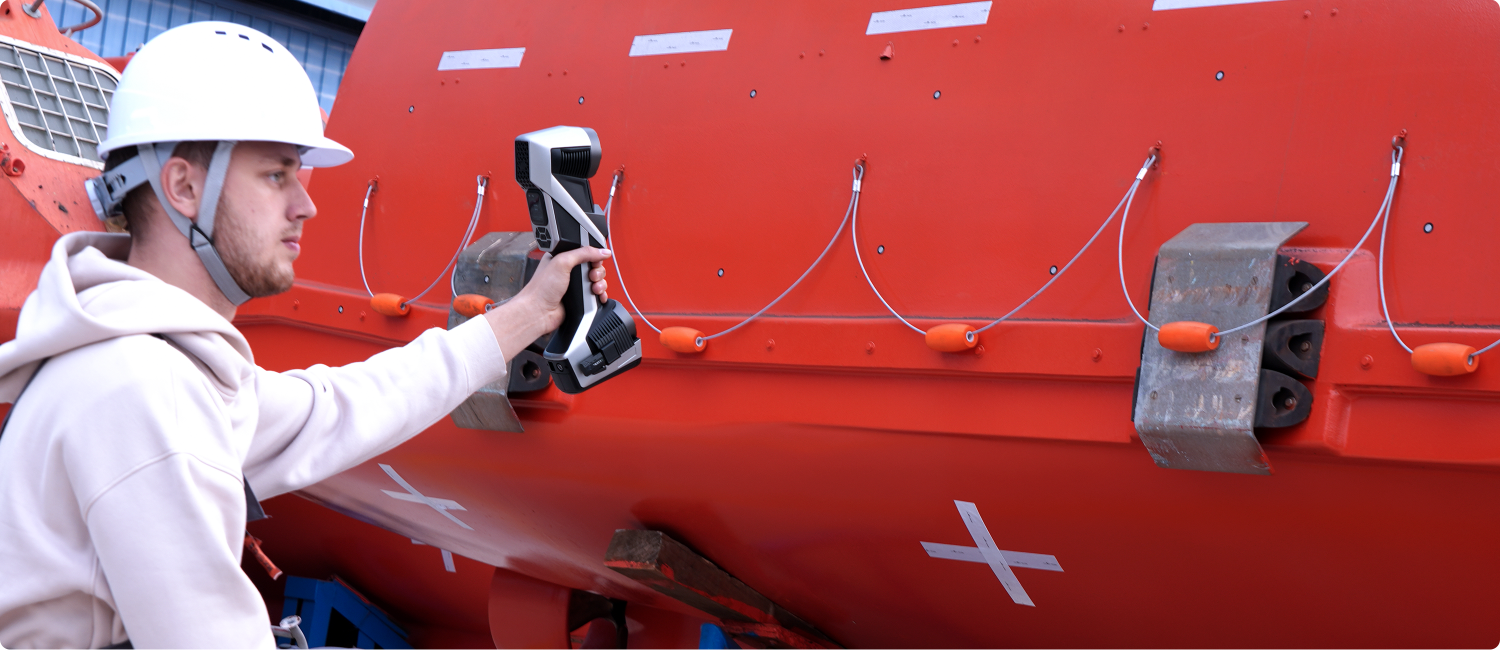

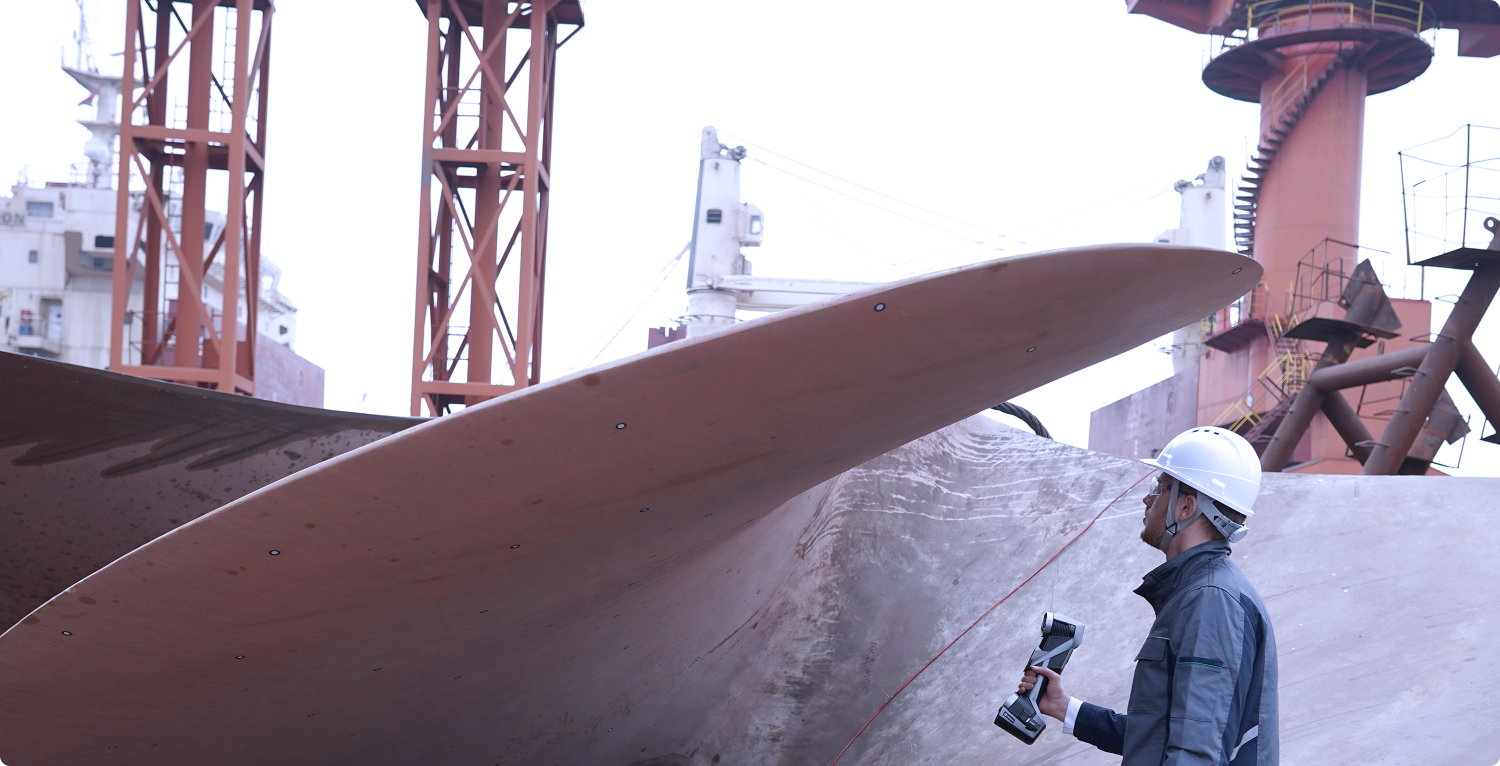

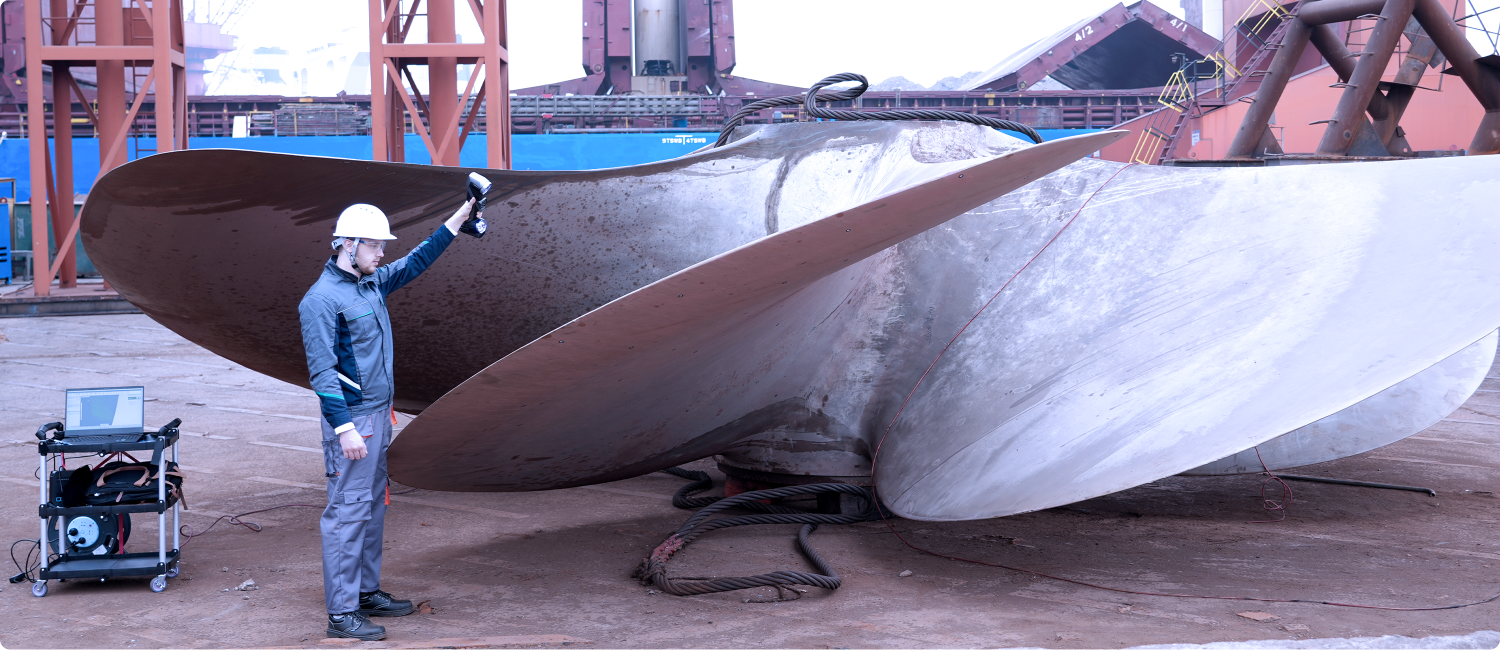

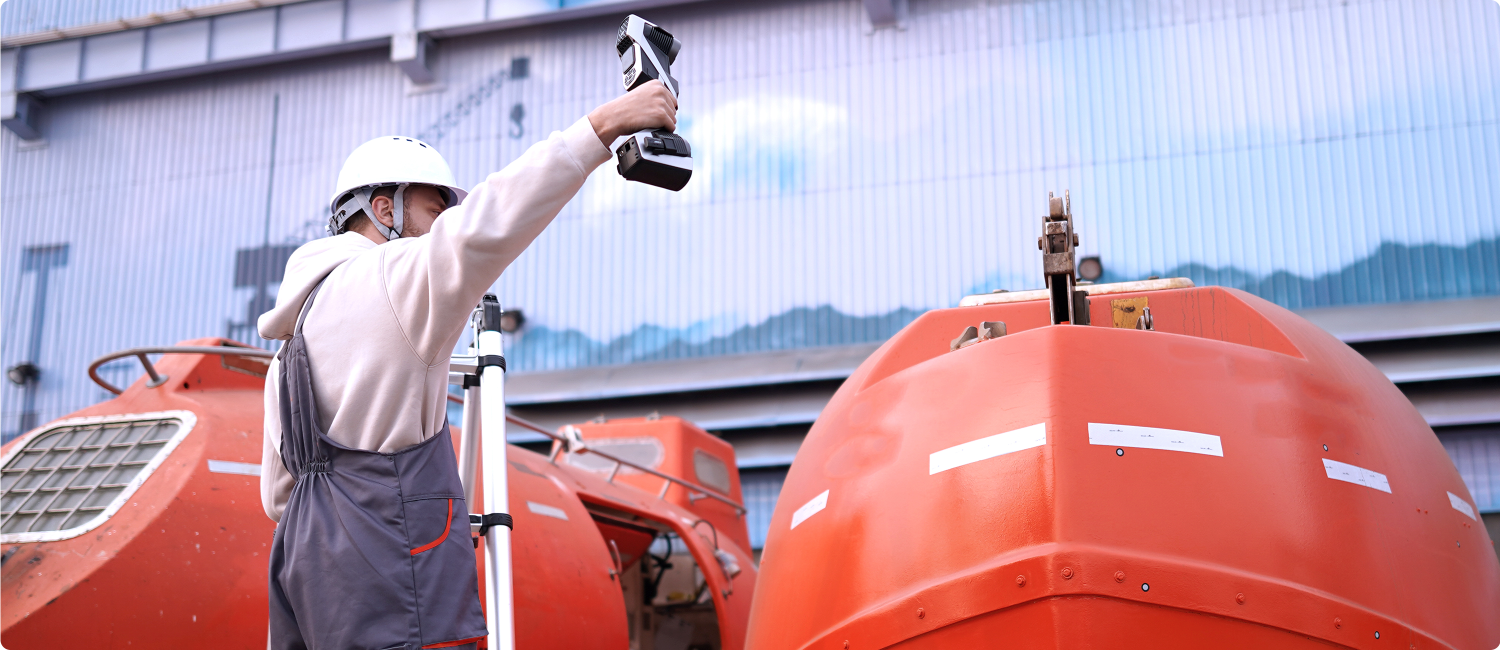

Ultra-large parts
The KSCAN-X wireless 3D scanner uses 4 × 21 blue laser lines for fast and efficient large FOV scanning, capturing extensive surfaces in a single pass. This 3D scanner delivers exceptional accuracy of up to 0.075 mm, with volumetric accuracy reaching 0.075 mm + 0.010 mm/m, making it ideal for large parts.
Adaptive photogrammetry
With its advanced adaptive photogrammetry system, the KSCAN-X 3D scanner delivers outstanding accuracy in long-distance measurements. This technology eliminates cumulative errors and maintains consistent volumetric accuracy, ensuring high-quality results for both large objects and fine details, even in demanding environments.

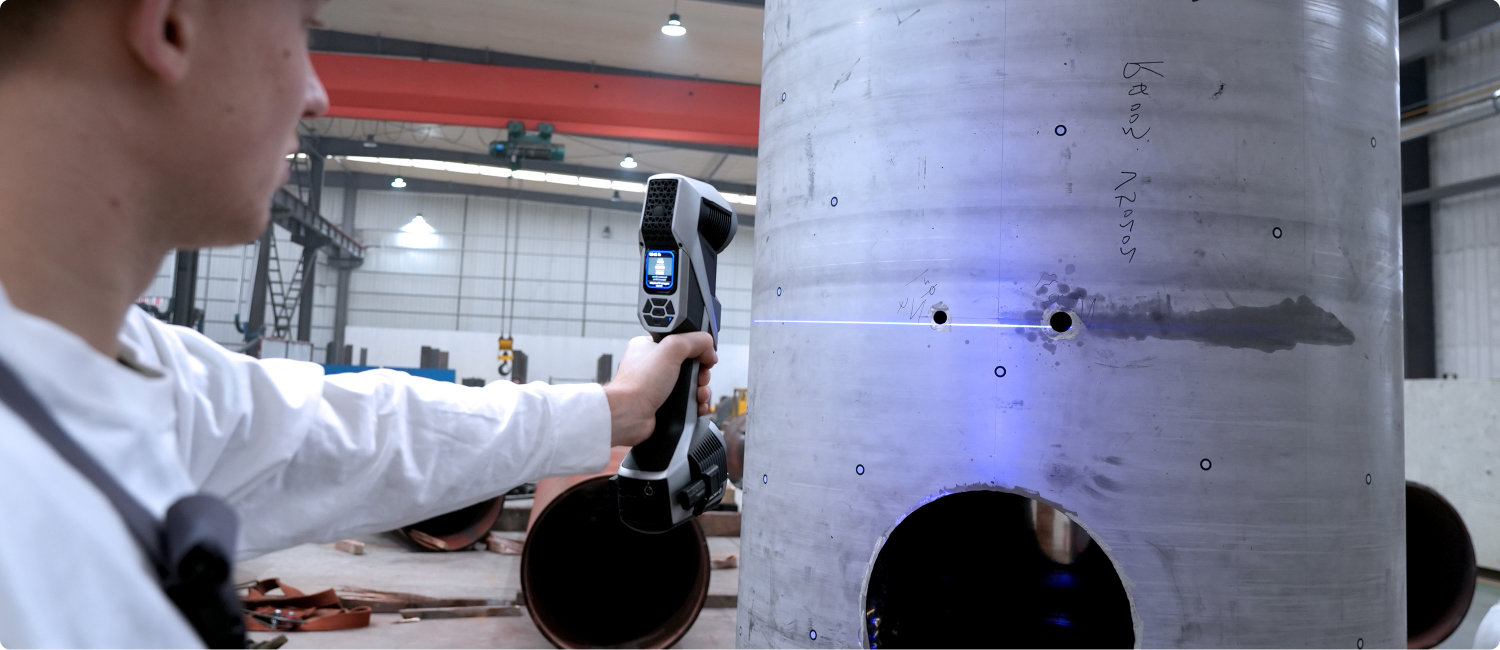

Medium and large-sized parts
The medium-distance scanning mode of the KSCAN-X 3D scanner, with 27 blue laser crosses, is designed for parts ranging from 0.5 m to 2 m. It captures complex details with an accuracy of up to 0.030 mm, ensuring precise inspection of medium and large-sized parts, including areas with challenging curves or fine features.
Deep hole measurement
The KSCAN-X 3D scanner features a more compact and lightweight design compared to similar products, with a shorter baseline and a dedicated blue laser line for deep-hole detection. This system enables precise capture of hard-to-reach areas such as pipe interiors or gear teeth, ensuring complete and accurate data collection even in the most challenging spaces.

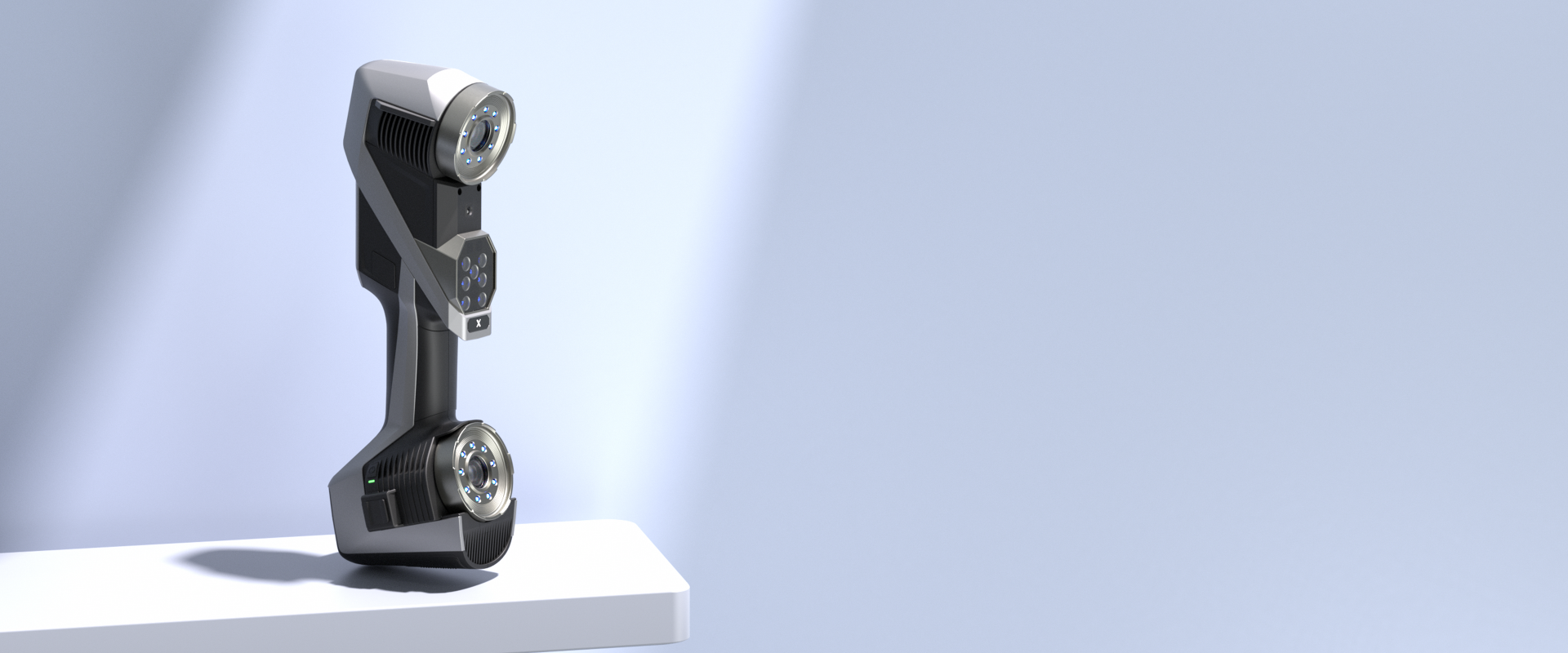

Maximum power and enhanced comfort combined in KSCAN-X
Well-structured visual framework that highlights key components such as the camera lens and laser system, ensuring intuitive and seamless operation. Designed for comfort and efficiency, it provides a secure grip and fatigue-free use, even during extended scanning sessions. Ergonomic and aesthetic design with dynamic lines and a balanced layout, combining functionality with a modern appearance.

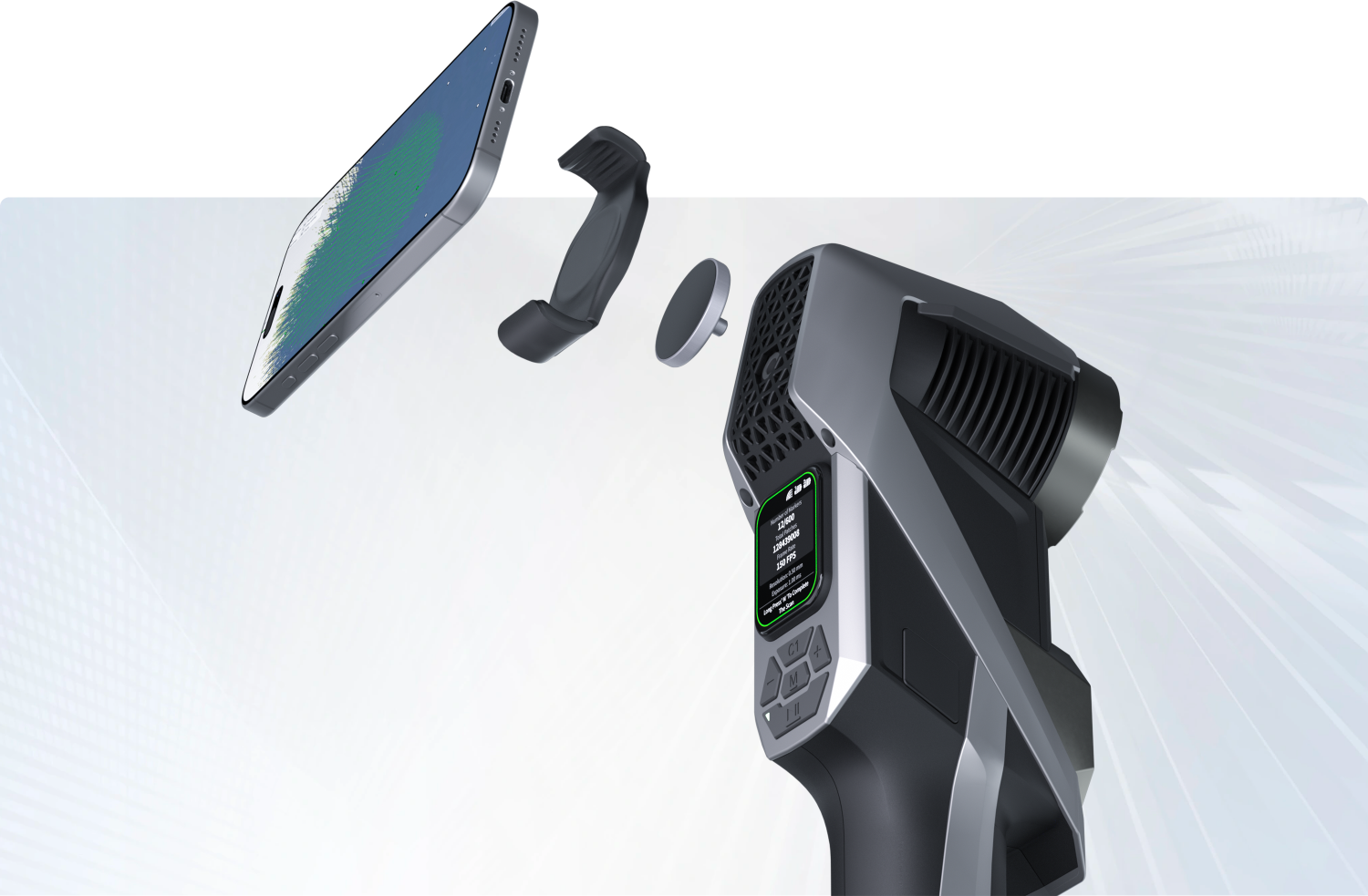

Intuitive and flexible technology
KSCAN-X Technical Specifications
General Information
| Property | Value |
|---|---|
| Type | KSCAN-X |
Scanning Modes
| Property | Value |
|---|---|
| Wide FOV scanning | 84 blue laser lines |
| Medium distance scanning | 54 blue laser lines |
| Deep hole scanning | 1 extra blue laser line |
| Photogrammetry | Adaptive photogrammetry |
Accuracy and Performance
| Property | Value |
|---|---|
| Accuracy (medium distance) | 0.030 mm |
| Accuracy (wide FOV) | 0.075 mm |
| Volumetric accuracy | 0.075 mm + 0.010 mm/m |
| Scanning rate | Up to 6,450,000 measurements/s |
| Scanning area | Up to 2,600 × 1,800 mm |
| Working distance | 0.30 – 2.50 m |
| Scannable object size | 0.5 m ~ 15 m |
| Resolution | Up to 0.1 mm |
| Laser class | Class II (eye-safe) |
Dimensions and Build
| Property | Value |
|---|---|
| Scanner dimensions | 344 × 124 × 99 mm |
| Camera spacing | 235 mm |
Connectivity
| Property | Value |
|---|---|
| Interface | USB 3.0 Type-B |
| Wireless standard | Wi-Fi 6 (802.11 a/b/g/n/ac) |
| Wireless connection | Dual WNIC support |
| Smart & wireless mode | Supported |
| Uninterrupted power supply | Supported |
Environmental Adaptability
| Property | Value |
|---|---|
| Operating environment | Fanless, suitable for workshops |
| Operating temperature | -10 ~ 40 ℃ |
| Operating humidity | 10 – 90% RH |
| Protection class | IP50 |
Patents
CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B
Notes
- (1) ISO 17025 accreditation: performance evaluated according to JJF1951 and VDI/VDE 2634 Part 3.
- (2) In combination with the 800 mm high-precision ruler.
- *The company reserves the right to interpret and modify the parameters and images in this manual within legal limits.
