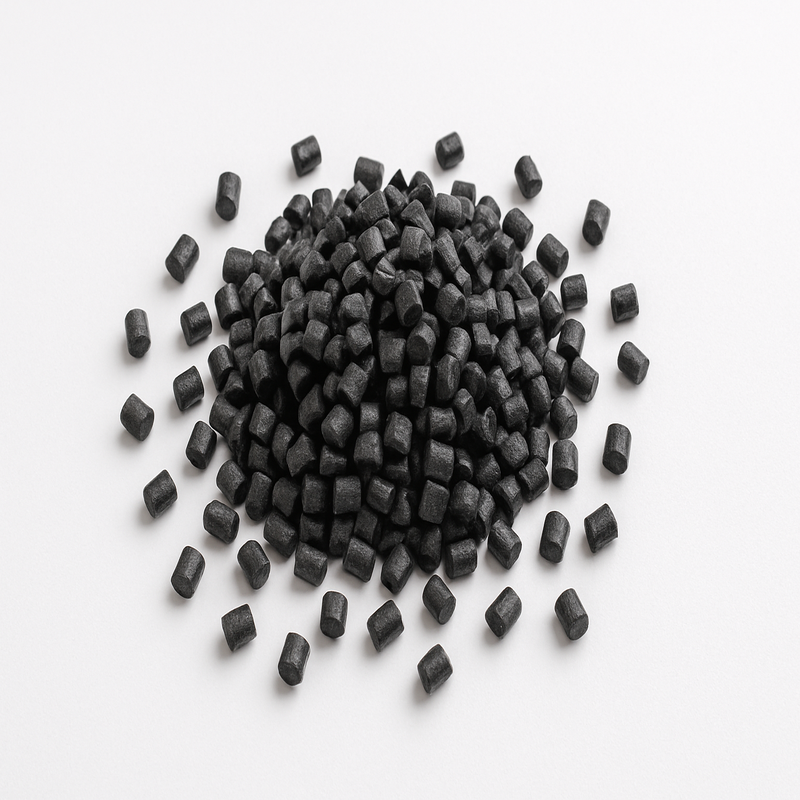

ABS-CF Pellet
- ABS pellets reinforced with carbon fiber
- Anti-static properties and EMI protection
- Superior rigidity for technical parts
Request a custom quote for your required quantities and secure the best conditions.
ABS-CF pellets for 3D printing combine the strength and versatility of ABS with the performance benefits of carbon fiber. This material offers increased rigidity, anti-static properties, conductivity, and protection against electromagnetic interference (EMI). ABS-CF is ideal for electronic housings, technical components, and industrial applications where durable and reliable parts are essential.
Technical Datasheet — Material
Physical Properties
| Parameter | Test Standard | Unit | Value |
|---|---|---|---|
| Density (21.5 °C) | ASTM D792 / ISO 1183 | g/cm³ | 1.20 |
| Melt Index (220 °C / 10 kg) | ISO 1133 | g/10 min | 11 |
| Glass Transition Temperature (Tg) | DSC, 10 °C/min | °C | 101 |
| Vicat Softening Temperature | ASTM D1525 / ISO 306 | °C | 113 |
| Heat Deflection Temperature (HDT) 1.8 MPa | ISO 75 | °C | 98 |
| Heat Deflection Temperature (HDT) 0.45 MPa | ISO 75 | °C | 102 |
Mechanical Properties
| Parameter | Test Standard | Unit | Value |
|---|---|---|---|
| Tensile Modulus (Young’s) | ASTM D638 / ISO 527 | MPa | 11515 ± 224 |
| Tensile Strength | ASTM D638 / ISO 527 | MPa | 132.2 ± 2.0 |
| Elongation at Break | ASTM D638 / ISO 527 | % | 2.2 ± 0.2 |
| Flexural Modulus | ASTM D790 / ISO 178 | MPa | 9574 ± 277 |
| Flexural Strength | ASTM D790 / ISO 178 | MPa | 185.7 ± 3.8 |
| Impact Strength (simply supported beam) | ASTM D256 / ISO 179 | kJ/m² | 9.5 ± 0.6 |
X-Y and Z Directions
| Parameter | Test Standard | Unit | Value |
|---|---|---|---|
| Flexural Modulus (X-Y) | ASTM D790 / ISO 178 | MPa | 4565 ± 701 |
| Flexural Strength (X-Y) | ASTM D790 / ISO 178 | MPa | 82.1 ± 6.0 |
| Flexural Modulus (Z) | ASTM D790 / ISO 178 | MPa | 1518 ± 265 |
| Flexural Strength (Z) | ASTM D790 / ISO 178 | MPa | 28.2 ± 1.5 |
| Impact Strength (Z, simply supported beam) | ASTM D256 / ISO 179 | kJ/m² | 21.9 ± 2.0 |
Recommended Printing Conditions
| Parameter | Recommended Value |
|---|---|
| Drying Temperature | 80 °C |
| Drying Time | 3-4 hours |
| Max. Moisture Content | 0.02 % |
| Cylinder Temperature 1 | 210-220 °C |
| Cylinder Temperature 2 | 220-240 °C |
| Cylinder Temperature 3 | 230-250 °C |
| Extrusion Temperature (Die) | 230-240 °C |
| Platform Temperature | 40-80 °C |
