PC-CF Pellet
- PC pellets reinforced with carbon fiber
- Superior mechanical strength and impact resistance
- Anti-static properties for industrial applications
Request a custom quote for your required quantities and secure the best conditions.

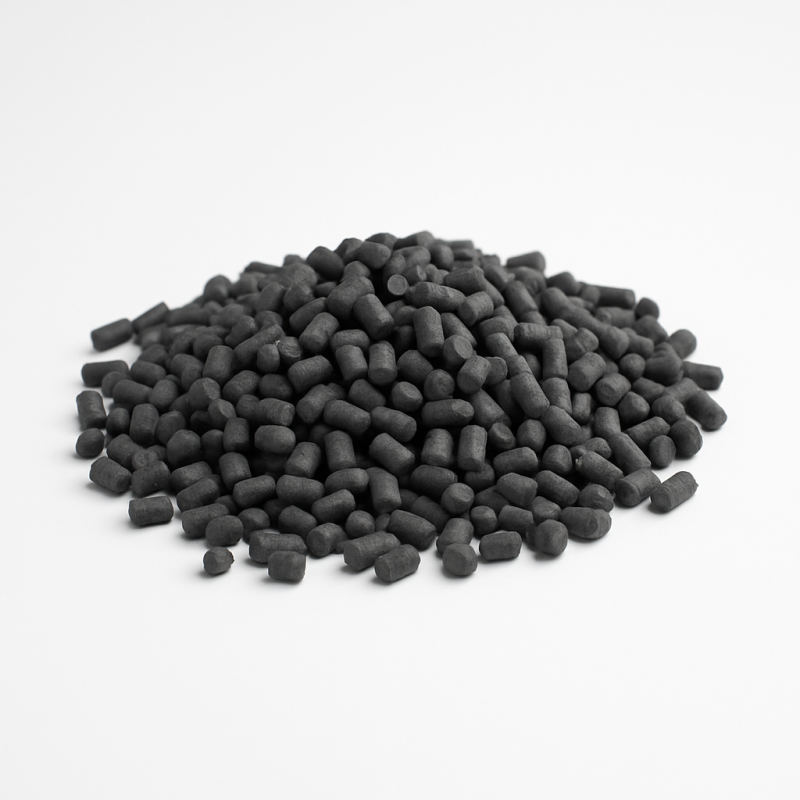

PC-CF pellets for 3D printing are made from polycarbonate reinforced with carbon fiber, providing a unique combination of rigidity, mechanical strength, and durability. The material features anti-static properties and excellent resistance to heavy mechanical stress, making it ideal for housings, automotive parts, drones, and other components requiring high performance. PC-CF is the right choice for industrial applications where reliability and robustness are essential.
Technical Datasheet — PC-CF Pellet
Material Composition
Component Percentages
| Component | Typical Percentage |
|---|---|
| Polycarbonate | 75-85 % |
| Carbon Fiber | 15-25 % |
| Additives (antioxidants, lubricants, dispersants, etc.) | 0.5-2 % |
Typical Test Performance
Test Results
| Item | Test Standard | Unit | Typical Value |
|---|---|---|---|
| Density | ISO 1183-1 | g/cm³ | 1.25-1.30 |
| Tensile Strength | ISO 527 | MPa | >100 |
| Flexural Strength | ISO 178 | MPa | >170 |
| Flexural Modulus | ISO 178 | MPa | >8000 |
| Notched Impact Strength | ISO 179 | kJ/m² | >8 |
| Heat Deflection Temperature (HDT, 1.8 MPa) | ISO 75 (1.8 MPa) | °C | >138 |
3305020004
